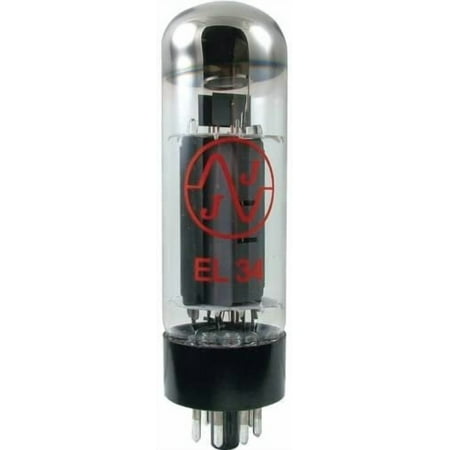

JJ EL34 Power Tube

The JJ Electronic EL34 is another classic from JJ. This tube features a rugged construction leading to an incredibly reliable EL34 with astonishing tone. Overall the sound is nicely balanced with tight lows, a rich and dynamic mid range and clear highs. The JJ EL34 is a great replacement for guitar amplifiers and stereo amps as well. Product Measurements by Type Body Height98 mmCathode Current Ik? 150 mAFilament Current If1.5 AFilament Voltage Uf6.3 VGain ?g2/g211Grid 2 dissipation Wg28 WGrid Current 2 Ig214.9 mAGrid Voltage 1 Ug1-10 V to -13.5 V typicalGrid Voltage 2 Ug2? 450 V, 265 V typicalGrid Voltage 3 Ug30 V typicalGrid capacitance cg115.5 pFGrid to Plate Capacitance ca/g1.3 pFHeater to cathode resistance Rk/f20 k?Heater to cathode voltage Uk/f? 100 VInternal Resistance Ri15 k?Item Diameter33.3 mmItem Height112 mmPlate Capacitance ca10 pFPlate Current Ia100 mAPlate Dissipation Wa? 25 WPlate Voltage Ua? 800 V, 250 V typicalTransconductance S11 mA/V

Octal power tube Max plate Watts = 25W, EL34/6CA7 Available in Singles, Apex Matched Pairs or Apex Matched Quads - please select from list.
