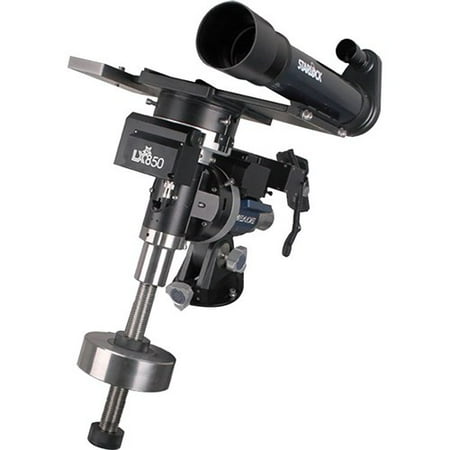

meade instruments lx850 german equatorial mount (mount only) telescope mount

meade lx850 german equatorial mount with starlock (no tripod)

Meade LX850 German Equatorial Mount w/StarLock (w/o Tripod)Meade SKU: 37-0850-00N | Helix SKU: ME37085000NOverviewThe LX850 mount constructed of machined stainless steel and aircraft grade aluminum is a rock solid platform for the most demanding applications with a 90 pound payload capacity and pointing accuracy as good as one arcminute. Features include precision roller bearings on each axis a 1.75 stainless steel RA shaft 5.8" main gears fine manual adjustment controls on both axis illuminated reticle output port telescope to computer USB cable and AutoStar Suite software. Mount main body weight is 55 pounds. Includes StarLock- the revolutionary new technology that makes target acquisition on your imaging sensor and accurate guiding during exposures completely automatic. With Meades exclusive LightSwitch technology at its core StarLock uses an 80mm f/5 optic and two camera sensor system to provide computer assisted polar alignment using the drift method. Once aligned the StarLock is guiding the mount in real time and even automatically programs periodic error correction achieving a guiding accuracy of up to 1 arcsecond in good seeing and with the capability of guiding on stars as faint as 11th magnitude. The LX850 features DC-servo motors on each axis with a maximum slew speed of 3 degrees per second allowing slewing 180 degrees to the opposite side of the sky in one minute flat. Fine slewing and photographic guiding speeds can be adjusted from .01x to 1x sidereal with faster slewing at 2x 8x 16x or 1/4 1/2 1 or 3 degrees per second. The mount and all electronics are externally powered by the included Meade Universal Power Supply (12V). An external DC battery or power pack may also be used; Meade 607 Power Cord sold separately. The mount includes both mechanical locks and slow motion manual controls in both axis if for some reason you found yourself without power. Includes single 26 pound stainless steel counterweight additional weights sold separately. LX800 mount shown in photo LX850 mount similar.
