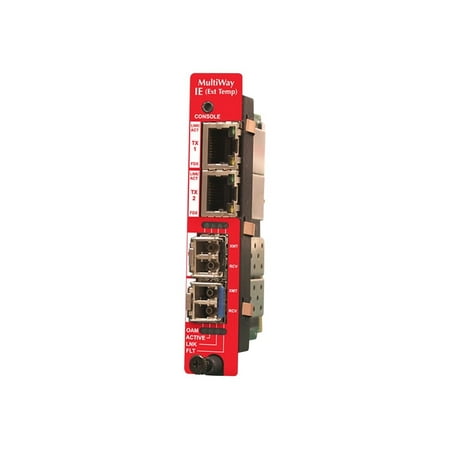

IMC IE-iMcV-MultiWay - Fiber media converter - 1GbE - 10Base-T, 1000Base-LX, 1000Base-SX, 100Base-TX, 1000Base-T - RJ-45 / SFP (mini-GBIC)

The IE-iMcV-MultiWay is a modular, CPE device providing two fixed 10/100/1000Base-T copper ports and 2 SFP ports. The SFP ports support fiber or copper SFPs. The IE-iMcV-MultiWay provides OAM functionality with 802.3ah and 802.1ag support on each port. As an Industrial Ethernet device, it supports an extended temperature range of -40 ��C to +85 ��C. There are four distinct DIP Switch selectable configurations that the IE-MultiWay supports. Among them are a 1 + 1 uplink protection switch, a 4-port Gigabit switch, and a dual copper to fiber SFP media/mode converter. As a 4-port device, it can be deployed with fiber redundancy (with or without 1+1 uplink protection) and status monitoring with management on all ports via SNMP, which now offers OAM for mission-critical applications. It can also be installed as dual 10/100/1000 Mbps copper to fiber media converter and be utilized as two separate converters. The IE-iMcV-MultiWay supports 10/100/1000 Mbps and 1 Gbps copper and 100 Mbps and 1 Gbps optical SFP modules, to provide greater flexibility in the network environment. The hotswappable nature of SFPs and the numerous fiber modes and types that are available allow for easy configuration and future upgrading as network demands evolve. The IE-iMcV-MultiWay offers a full feature set including auto negotiation, selective advertising, AutoCross (on copper ports), VLANs, loopback testing and OAM.

B&B IE-iMcV-MultiWay Module, 2TX/2SFP Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters Expand your network capabilities with this 2 transceiver/media converter With 10/100/1000Base-T technology get up to 1000Mbps data transfer rate over twisted pair cable The Desktop provides convenient installation
