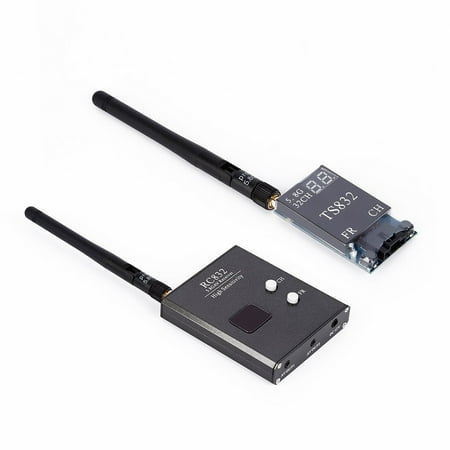

32Ch 600Mw 5.8G 3.5Km Wireless Av Rc832 Receiver & Ts832 Transmitter For Fpv

Features: 32 channels: Cover A, B, E bands and F band (Airwave band), 4 bands and all frequencies compatible; Two switching buttons: CH button for frequencies channels switching, FR button for frequencies bands switching; Two digits display: one for CH and the other for FR, real-time positioning which frequency band and which channel received; Power off memory: Replay the very last frequency band and channel; Independent video and audio signal outputs; 600mW transmitter power assure 3.5KM distance in open area, 5-8 KM is available if work with the bigger gain antenna. Specifications: TS832 Transmitter Video format supported: NTSC/PAL Antenna connection: RP-SMA, jack (module side, both TX and RX) Power input: 7.4-16V (3S Lipo suggested) Transmitting power: 600mw Antenna gain: 2db Working current: 220mA at 12V Video bandwidth: 8M Audio bandwidth : 6.5M Transmitter size: 64mm*32mm*9mm RC832 Receiver Receiver size: 65mm*87mm*15mm Power input: 12V Working current: 200mA max Antenna impedance: 50 Antenna gain: 2db Video impedance: 75 Video format: NTSC/PAL auto Antenna connection: SMA Package included: 1 x Transmitter (RX) 1 x Antenna (2db) 1 x Power Cable for RC832 1 x AV Cable 1 x Receiver unit (TX) 1 x Antennas (2db) 1 x Basic wires set

32 channels: Cover A, B, E bands and F band (Airwave band), 4 bands and all frequencies compatible; Two switching buttons: CH button for frequencies channels switching, FR button for frequencies bands switching; Two digits display: one for CH and the other for FR, real-time positioning which frequency band and which channel received; Power off memory: Replay the very last frequency band and channel; Independent video and audio signal outputs;
