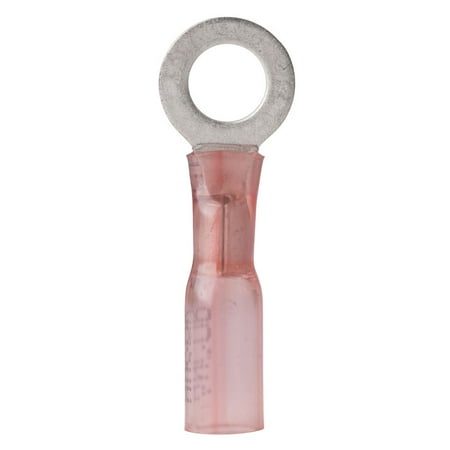

Ancor 22-18 Gauge - #8 Heat Shrink Ring Terminal - 3-Pack [310203]

Features tinned copper for maximum current flow and corrosion resistance. Adhesive lined heat shrink tubing shrinks to form a tight seal and the ultimate in vibration and strain relief. Wire Range: 22-18 Fastener: #8 Color: Red Pack: 3

22-18 Gauge - #8 Heat Shrink Ring Terminal - 3-PackGauge Size: 22-18Screw Size: #8 Quantity: 3Product Features: Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC. Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief. Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage. UL Listed and CSA Recognized Highest shrink ratio - shrinks to 1/3 original size. Shrinks at 257 deg. F/125 deg. C. Operating temperature range 40 deg. C to 110 deg. C. ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing Shrinks to form a water tight seal and the ultimate vibration and strain relief. Tinned for corrosion resistance. Pure copper for maximum current flow. Brazed seam for maximum strength. Wire Range: 22-18 mm: 0.3-0.8WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge: 22-18 AWG Type: Ring Terminals Post Size: #8 Package Qty: 3 Heat Shrink: Yes Box Dimensions: 1"H x 1"W x 1"L WT: 0.1 lbs UPC: 091887316261Quick Guide (pdf)
