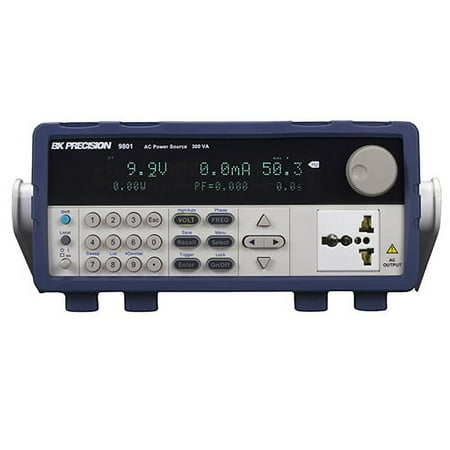

BK Precision 9801 150V/3A, 300V/1.5A Programmable AC Power Source

The 9801 is both a programmable AC power source, and measurement tool, in a compact benchtop package. This fully programmable linear AC source delivers up to 300 VA through its universal line output terminal on the front and output connector on the rear. The output can be varied from 0 to 300 V with 0.1 V resolution, with adjustable start and stop phase angles from 0 to 360 degrees and maximum current of 3 A. The output frequency can be adjusted from 45 Hz to 500 Hz. The bright VFD display shows Vrms, Irms, Ipeak, frequency, power factor (PF), apparent power, true power and elapsed output time.The AC source provides a power line disturbance (PLD) simulator, list mode, and sweep mode for simulation of common power grid faults and disturbances. A built-in dimmer function is also available for testing motors and LEDs.List mode can be used to generate sequences of waveforms such as surges, sags, and frequency disturbances.

300 VA, 300 V, low distortion, single phase, AC power source delivering a maximum of 3 Arms / 12 A peak Output frequency adjustable from 45 Hz – 500 Hz Select 150 V / 300 V autoranging or 300 V range operation for continuous sweep from 0 - 300 V Displays Vrms, Irms, Ipeak, frequency, PF, apparent power, true power, and elapsed output time Adjustable phase angle control Programmable voltage and frequency limit settings Built-in PLD and dimmer simulation List mode: 10 user-defined programs with up to 100 programmable steps each BNC I/O for external triggering, output status indication/control, and synchronization Save and recall up to 100 instrument settings
