Edwards Signaling Annunciator Kit,Clear,5 13/16" L 7005-G5

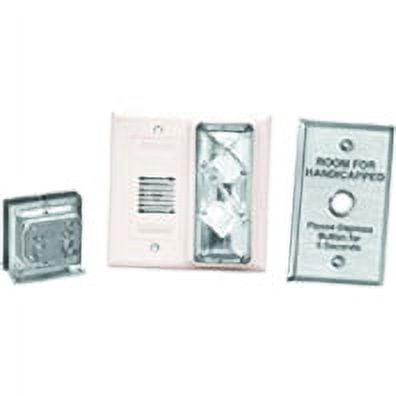

The Edwards 7005-G5 Hotel Room Annunciator is for use in hotel rooms and other areas designed to accommodate those with audible, visual, or physical impairments. The kit consists of a 6536-G5 horn/strobe for audible and visual signaling, a 620 push button, a 147-10 mounting plate, and a 592 transformer. Each component may also be ordered individually. The 6536-G5 Horn/Strobe is designed for use in a single gang 2" (51mm) x 4" (102) box located over doors. Each unit contains an audible horn signal which generates an 82 dBA sound pressure level at 10 ft. and a high intensity strobe. The Edwards 592 transformer is used to power the horn/strobe. It is equipped with a grounding wire and is suitable for installation in both plastic and metal boxes. The 620 push button station provides call activation when installed in the 147-10 mounting plate. The plate has a stainless steel face. The switch is momentary. Main Features Kit includes 6536-G5 Horn/Strobe, 592 Transformer and 620 Push Button Neutral white color Fits single gang box 92dB Buzzer at 1 meter/82dB at 10 ft. General Information Name: Edwards 7005-G5 Room Annunciator, UTC Fire & Security Company, Edwards Category: Kidde - Edwards, Fire, Fire Control Panels, Remote Fire Annunciators, Featured Best-Sellers UPC Code: 782640003107 Country of origin: Mexico. Country of origin is subject to change.

Material Engineered Thermoplastic Color Clear Includes Push Button Switch Standards UL 1638 Listed Voltage 24V AC
