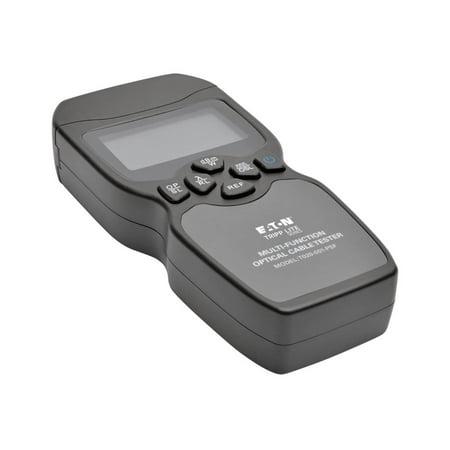

Tripp Lite Multi-Function Optical Fiber Cable Tester with Power Meter

General Information The all-in-one T020-001-PSF Multi-Function Optical Fiber Cable Tester is an essential tool for cable installers or anyone working in telecom or LAN environments. The combination power meter/light source/visual fault locator allows you to test fiber optic cables for breaks, insertion loss and optical power loss. It features FC connectors with optional SC, ST and LC adapters available. The power meter supports 850 nm, 1300 nm, 1310 nm, 1490 nm, 1550 nm and 1625 nm wavelengths, while the light source supports 1310 nm and 1550 nm wavelengths. The visual fault locator features multiple frequency settings for continuous and flashing modes. The easy-to-read LCD interface displays power loss measurement data, wavelength, frequency, battery capacity and battery charge status. Three AA batteries are included, and the auto-off function preserves battery power. If you're using rechargeable AA batteries, the USB Micro-B port charges them via connection to a USB wall charger or a computer's USB port. When not in use, the T020-001-PSF can be stored in its handy carrying case. ? Technical Information Device Function: LAN Cable Testing Device Function: Network Testing Device Function: Insertion Loss Measurement Device Function: Optical Power Loss Device Function: Visual Fault Locator Device Function: Power Level Testing Device Function: Cable Signal Testing Device Function: Power Monitoring Device Function: Cable Fault Testing Device Function: Optical Power Testing Device Function: Fiber Optic Cable Testing Device Function: Frequency Measurement ? Interfaces/Ports HDMI: No DVI: No VGA: No USB: Yes Serial Port: No Serial V.35 Interface: No Audio Line Out: No PoE (RJ-45) Port: No Network (RJ-45): No ? Media & Performance Media Type Supported: Twisted Pair Media Type Supported: Coaxial Media Type Supported: Optical Fiber ? Battery Information Number of Batteries Supported: 3 Battery Size Supported: AA Battery Included: Yes Battery Rechargeable: Yes ? Miscellaneous Package Contents: T020-001-PSF Multi-Function Optical Fiber Cable Tester 3 x AA Batteries Cleaning Swabs Carrying Case Owner's Manual Environmentally Friendly: Yes Environmental Certification: RoHS Country of Origin: China ? Warranty Limited Warranty: 2 Year

Tripp Lite Optical Fiber Cable Tester with Power Meter, Light Source and Visual Fault Locator (T020-001-PSF) FC connectors with optional SC, ST and LC adapters available Light source supports 1310 and 1550 nm wavelengths Power meter supports 850, 1300, 1310, 1490, 1550 and 1625 nm Auto-off function saves battery power USB Micro-B port for charging rechargeable AA batteries
