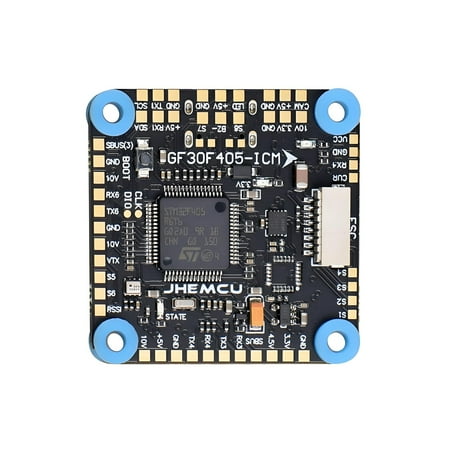

JHEMCU GF30F405-ICM Flight Controller – F4 STM32F405 with ICM-42688-P Gyro, Dual BEC 5V/3A & 10V/2A, Barometer, 16MB Blackbox, OSD & DJI Port for FPV Racing Drones

The JHEMCU GF30F405-ICM Flight Controller is a feature-packed F4 flight controller designed for FPV racing, freestyle, and long-range drones. With its STM32F405 MCU, ICM-42688-P gyro, and dual BEC outputs, this controller offers precision, reliability, and flexibility for modern FPV builds. ✅ Advanced F4 Performance Powered by the STM32F405RGT6 processor and ICM-42688-P gyro, the GF30F405-ICM ensures responsive control, low noise, and high stability during flights. This makes it suitable for pilots who demand both racing agility and freestyle reliability. ✅ Full Flight Data Integration The flight controller integrates a SPL06 barometer, AT7456E OSD, and 16MB blackbox memory. Together, these features provide real-time flight data monitoring and logging, helping pilots tune performance and track flight information. ✅ Dual BEC Outputs for Power Management The board includes 5V/3A and 10V/2A BEC outputs, delivering reliable power to FPV cameras, VTX modules, LEDs, and accessories. Combined with built-in voltage and current sensors, this ensures stable and efficient power distribution across your system. ✅ DJI FPV System Ready With a dedicated DJI port, the GF30F405-ICM offers plug-and-play support for the DJI Air Unit and DJI O3 digital FPV systems. This integration reduces wiring complexity and provides a clean, professional build. ✅ Flexible Connectivity & Protocols The FC supports SBUS, IBUS, DSM2/X, TBS Crossfire (CRSF), and other popular receiver protocols. With four UART ports, it allows for flexible connections to GPS, telemetry, and additional peripherals, making it ideal for both beginners and advanced FPV pilots. ✅ Easy Setup & LED Customization Featuring a USB Type-C interface, updating firmware and configuring via Betaflight or INAV is quick and straightforward. Additionally, the WS2812 LED output supports fully programmable lighting for customization and visibility. ✅ Specifications MCU: STM32F405RGT6 Gyro: ICM-42688-P Barometer: SPL06 Blackbox: 16MB OSD: Supported Input Voltage: 3–8S LiPo (11V–36V) BEC Outputs: 5V/3A & 10V/2A UART Ports: 4 (UART1, 3, 4, 6) Mounting: 30.5×30.5mm (M3, 4mm holes) Dimensions: 36×36mm Weight: 8.7g USB Port: Type-C

Powerful F4 Hardware – STM32F405 MCU paired with ICM-42688-P gyro for stable flight performance. Dual BEC Outputs – 5V/3A and 10V/2A power supply for cameras, VTX, and accessories. Integrated Flight Data Systems – SPL06 barometer, built-in OSD, and 16MB blackbox memory. DJI Digital FPV Support – Dedicated plug-and-play port for DJI Air Unit or O3 VTX. Wide Receiver Compatibility – Works with SBUS, IBUS, DSM2/X, TBS Crossfire, and CRSF. Multiple UART Ports – Four UARTs for flexible peripheral connections such as GPS and receivers. USB Type-C Interface – Easy firmware updates and configuration via Betaflight or INAV. Programmable LED Support – WS2812 output for custom lighting effects. Durable Build – Lightweight 36×36mm PCB with 30.5×30.5mm mounting, only 8.7g.
