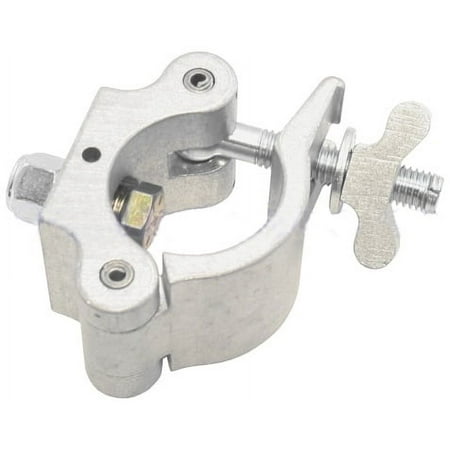

Light Source Mega-Coupler - Aluminum Finish - Light Source MLM

Light Source's Mega-Coupler has solid nut tabs that won?t break off. The Mega-Coupler uses standard half inch by 1-1/4 inch long hex head grade 8 bolts to secure your load. The bolt head locks into a hex milled pocket so that you can tighten the nyloc nut while the clamp is installed. It has an industry compatible 14 mm thick base. The Mega-Coupler fastens from (1-1/4" Pipe) 1.66" OD to 2" OD truss tubes. Specifications: Minimum Size: 1.25" pipe, 1.66" OD pipe Maximum Size: 1.5" pipe, 1.90" OD pipe, 2" OD truss tube Safe Vertical Working Load: 1,100 lbs (500kg) Hardware: 1/2-13 tpi × 1 1/4" Hex Head grade 8 zinc plated steel bolt with nyloc nut 1" Belleville Washer Weight: 1.2 lbs
