Light Source TCM

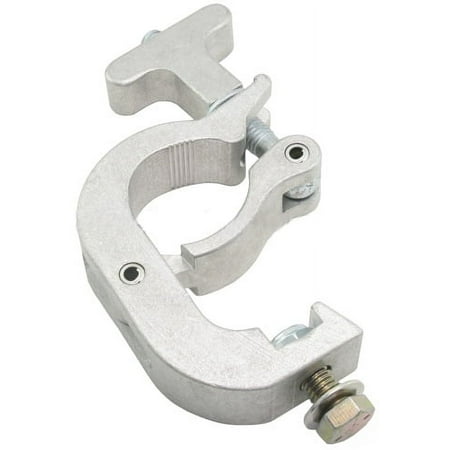

Light Source TC Clamp - Aluminum Finish - Light Source TCM

The TC Clamp will fasten from 2" OD to 1.5" OD tubes. It has a 2-1/2" T-handle so no tools are required to fasten to the pipe. 1.25" × 1/2"-13 TPI Grade 8 fastener, nylock nut and 1" diameter Belleville spring washer are provided for connecting your load. Specifications: Safe Vertical Working Load: 450 lbs (200 kg) Minimum Size: 1.5" OD tube, 1.25" pipe, 1.66" OD pipe Maximum Size: 2" OD truss tube,1.5" pipe, 1.90" OD Hardware: 1.25" × 1/2" ? 13 TPI Grade 8 fastener with Nylock nut 1" Belleville spring washer Dimensions: 4 5/8" tall x 4" wide x 1 3/16" thick Weight: 1.25 lbs
