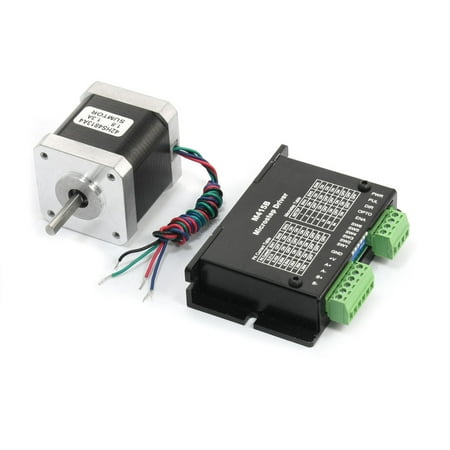

Nema 17 4 Wire CNC Robot Stepper Motor 48mm 1.3A 74oz.in w M415B Driver

It is 2 phase. 1.8 Celsius Step Angle. High Step Accuracy and Resolution. Low Vibration and Noise. Can be Customized for Winding Current, Shaft Options, Cables and Connectors. Typical Applications for Nema Stepper Motor: Inject printers, Analytical and Textile Equipment, Embroidery Machine, Precision Telescope Positioning Systems, High Speed Dome Camera and Robotics, RepRap, Markerbot, CNC Router AND OTHER projects.. The driver supply voltage up to +40VDC, Output current up to 1.5A. Inaudible 20 KHz chopping frequency. TTL compatible and optically isolated input signals. 7 selectable microstep resolutions: 1, 2, 4, 8, 16, 32, 64. Protection against power leads(+, -)reversal. The first three switch (SW1, SW2, SW3) of the DIP switch are used to set the current. Select a setting closest to your motor required current. Microstep resolution is set by SW4, SW5, SW6.(0FF=0.ON=1) Suitable for a wide range of any 2-phase and 4-phase stepping motors from NEMA size 14 to 23, by using advanced constant-current. Enter the website for more information: http://54.235.23.96/watch_images/42HS63A4ZH.jpg
