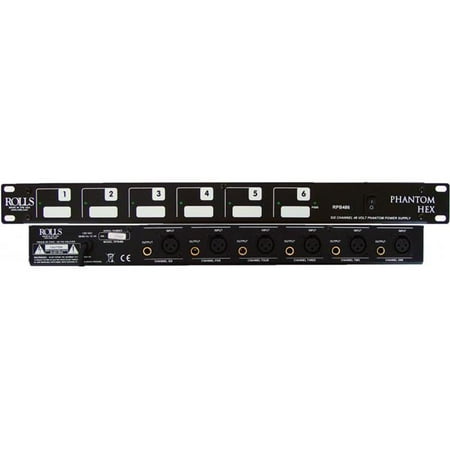

ROLLS Phantom Hex

The powers up to 6 condenser microphones with 48 volts of ultra clean phantom power. The outputs are 1/4" Tip-Ring-Sleeve balanced for easy connection to a digital multi-track recorder. To eliminate the possibility of any DC voltages, the features pull-down resistors and isolation capacitors on all outputs. XLR Input, 1/4" TRS Balanced Output. +48 Volt Regulated Phantom Power. LED "In Use" Indication. Perfect for digital multitrack use. Connectors: 6: XLR female jacks (pin 2 hot), 6: 1/4" TRS jacks (tip positive). Phantom Power Voltage: 48 Volts. Max Phantom Power Current: 14 mA each channel. Power Supply: Linear 120VAC 50/60Hz. Dimension: 19"W x 1.75"H x 2.5"D.- SKU: TBALL12032
