Techtongda Laser Machine Rotary Attachment For CO2 Laser Engraving Machine NEMA 23 3 Wires

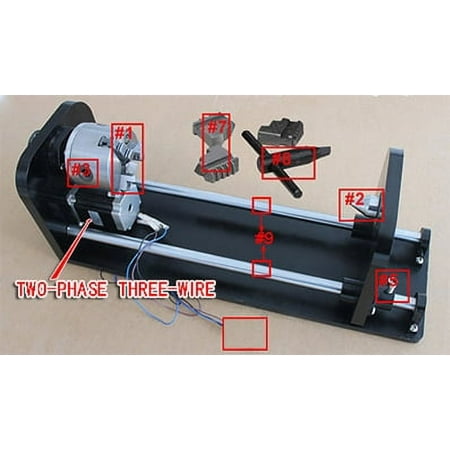

Rotary Size: 520*160*190mm; 80mm 3-jaw scroll chuck;Ratio: 1:2.5 Synchronous Pulley Induction. Surface driven, so no need to change software settings for every part diameter Closed-loop control, no longer lose any steps, up to its maximum torque. Smooth motion and super-low motor noise This laser machine rotary attachment can add rotary laser processing capability to your laser engraver,such as 350, 460, 960, 1290, 1390, 1690 etc. Product description The maximum length of processing:11.7"(30cm). The maximum diameter of processing: 7.8"(20cm). Step motor: three wires(36V) Transmission mode: by belts Transmission proportion: 1：3 Size: 20.08*6.24* 7.41(520*160*190mm) The weight of holding: ＜44.09lb(＜20kg ) #1: It is the 3 claws of the rotary. It can be used for fixing the engraving objects, used alone, can also be used in conjunction with the#2. #2: To fix carved objects with #1. To adjust the distance between 1# and 9# by the slide bar. And the specific distance/length be determined by the length of the sculpture objects. #3: To adjust the distance between the 3 claws of the rotary and 1#. And the specific distance/length be determined by the diameter of the sculpture objects. #4: Connect the laser machine position #6.Pay attention to mounting screws in the installation position. #5 : After Engraving objects placed between #1#2, it can be used for fixing objects and preventing the #2 sliding and the resulting carved objects slide off. #7: The anti claw of the rotary. It can be used for fixing the hollow carved objects. #8 : The wrench. To adjust the distance of the 3 claws of the rotary.
