Dabpress 4x7 inches DIY Uncaged Rosin Press Kit - Build a 20 - 30 Ton Commercial Rosin Press

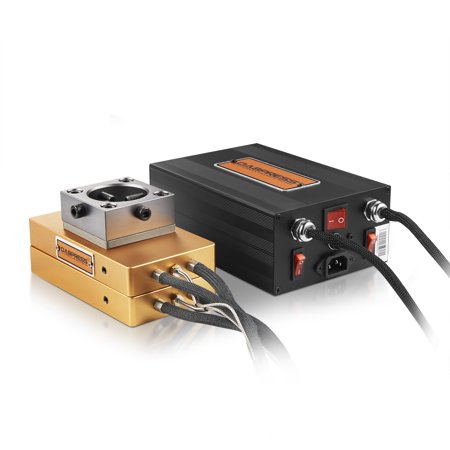

Dabpress uncaged 4x7" rosin plate kit (dp-rp47) is just a part of rosin heat press that used for building a rosin press, it needs be paired it with a hydraulic shop press before starting processing. This plate kit includes bottom plate holder to secure it on the hydraulics for alignment with upper plate. It allows loading a large amount of materials at a time, but we recommend to apply the pressure slowly to protect the rosin bags from blowing out. It comes with a user's guide, AC power cord, and tool bag. Item Spec: - Temp Range: 0 - 399 Fahrenheit - Voltage: 110v - Wattage: 1,200w - Working Area: 4x7" - Package Dimension: 20.4" x 13.3" x 12.9"Tips: Please do not load the similar metal inside of dual heat plate to protect it from scratching the working surface.How to Set up Bottom Plate Holder?: - 1# Install the top heat plate onto the ram of the hydraulic press. - 2# Install the bottom heat plate, use the long threaded rod to pass through the bamboo insulation, then attach it to the worktable plate. - 3# Lower the ram on the hydraulic press until both plates touch. - 4# Adjust the position of the plates if necessary, make sure the plates are aligned. - 5# Insure bamboo plank is aligned with the bottom plate. - 6# Tighten the nut on the long threaded rod to secure it with the worktable plate

Alignment & Safety Upgraded version 4x7" uncaged rosin plate kit allows the bottom platen to secure on the hydraulics for alignment and safety in the process of working.Innovative 8mm Slim Insulator SGS certified food grade Insulation, heats up to 200F about 4-5 minutes and protects the hydraulics from overheating.Food-grade Working Surface DIY rosin press kit includes dual heated platens made of anodized 6061 aluminum plates for cleaning up easily.Accurate Temperature Detected Accurate temperature detected and delivered through independent heating rods and thermocouples.Long Working Life The heating rods have a service life of more than 6,000 times.
