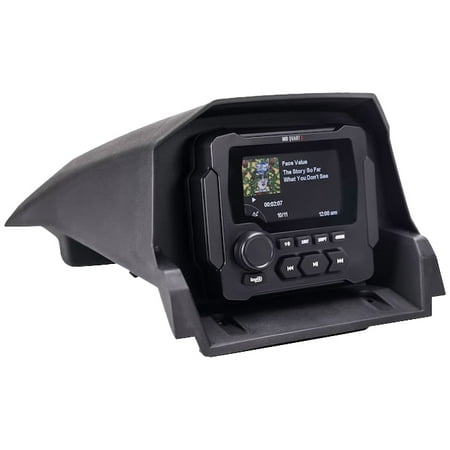

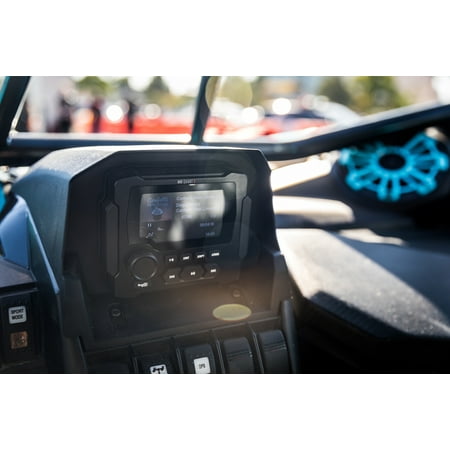

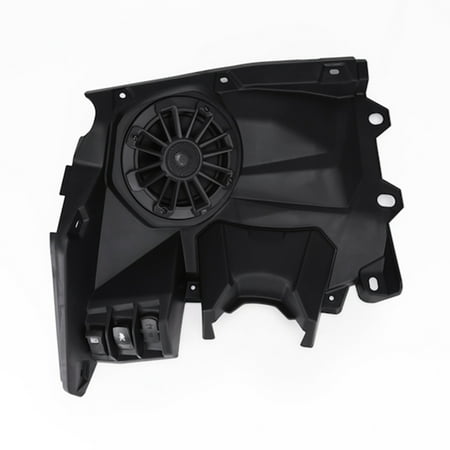

▪ Features of MBQX-STG2-RAD-1: Source unit & mounting: The AM/FM, Bluetooth source unit (GMR-LED) is mounted in a dash accessory that will not require the radio to be removed to access the fuse panel or diagnostic port, MBQX-RAD-1: LED Gauge Mount Radio with AM/FM/BT and Apple Control Maverick X3 Radio Dash Mounting Panel, Front speakers & mounting: The 6.5 components are the NP1-116 two way speakers. The left speaker panel is Smart-Lok Diff Model capable and retains all factory mounts for ECU's.

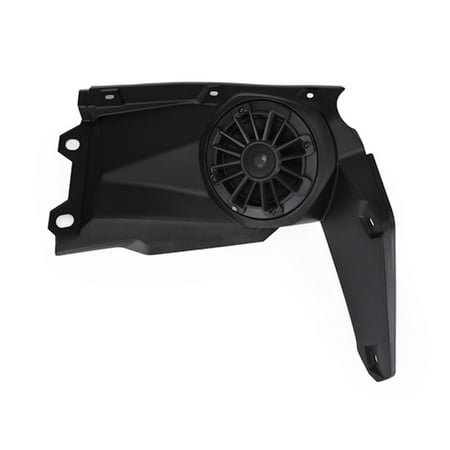

▪ No relocation brackets or customization required, RMS POWER HANDLING (WATTS): 60, PEAK POWER HANDLING (WATTS): 120, SPEAKER IMPEDANCE (OHMS): 4, FREQUENCY RESPONSE: 30Hz-22kHz, SENSITIVITY: 92dB, CROSSOVER SLOPE: 6dB / Octave, MOUNTING DIAMETER/CUT OUT (IN): 5.6, MOUNTING DEPTH/CHASSIS DEPTH (IN): 3.05, MBQX-POD-1: 6.5 Inch 2 Way Composite Coaxial Speakers, right and left speaker dash panels for 6.5 inch speakers, easy installation, 400 Watt Two Channel Class D, Compact Powersports Amplifier.

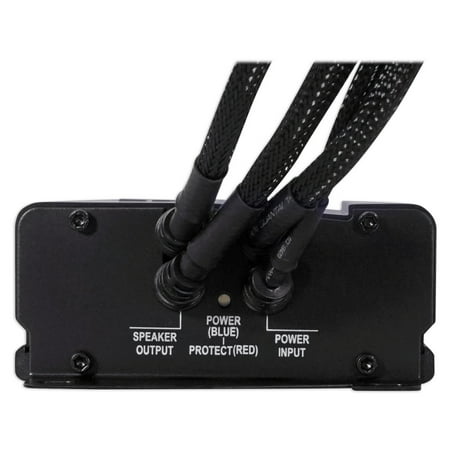

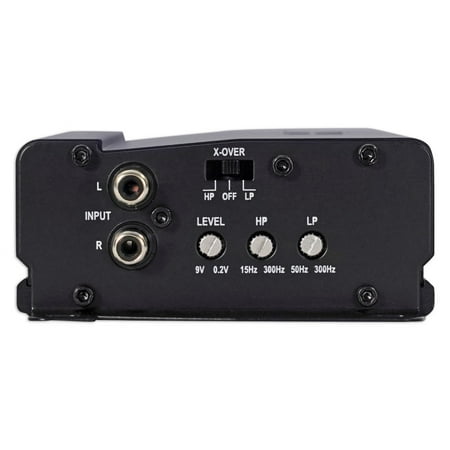

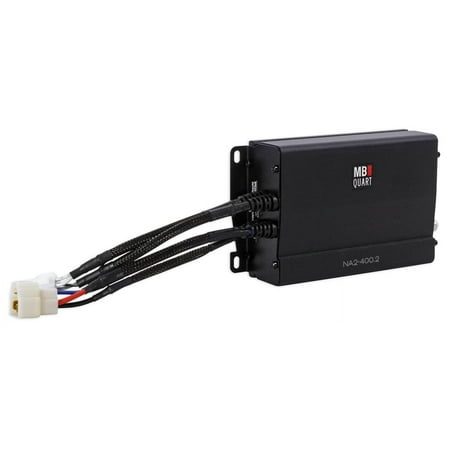

▪ Full range amplifier & mounting: NA2-400.2: High Efficiency, Full Range Class D 400 Watt Amplifier with mounting plate., Class: Full Range Class D, Variable Voltage: 0.2V~9V, Signal to Noise Ratio: >90dB, Frequency Response: 20Hz-20kHz, Crossover Type: Electronic 12dB Per Octave, Low Pass Crossover: Switch Low Pass 300 Hz, Bass Boost: 0-12dB@45Hz, Subsonic Filter: 60Hz, Power @ 2-Ohms: 2 x 200W, Power @ 4-Ohms: 2 x 100W, Total Channels: 2, Audio Inputs: RCA, Power Terminal 12v/GND: Molex 10 ga.

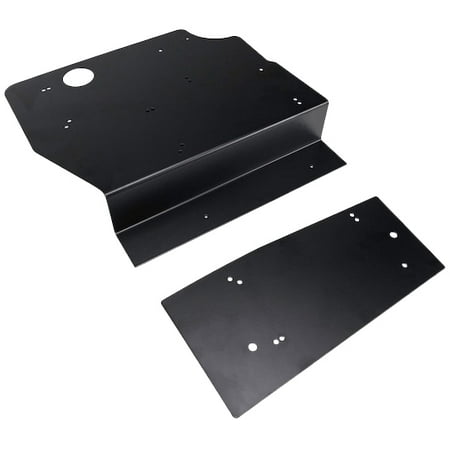

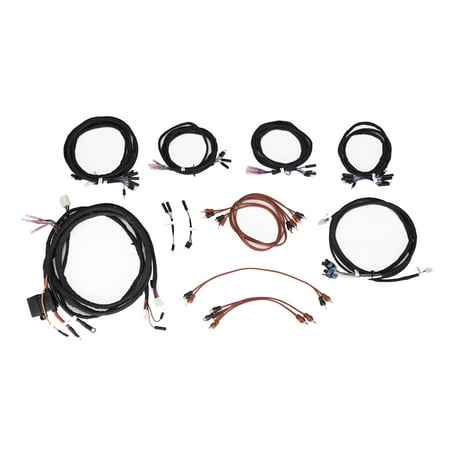

▪ Speaker Terminal Wire Gauge: Molex Plug Connector, Fusing: 1 x 30 Amps, Certifications: Marine & Powersports, Dimensions: 3.70 X 5.51 X 1.77 in, Weight: 2.12 lbs, Harnessing: Included with appropriate components, Accessories: MBQX-ACC-1: Maverick X3 Radio and Triple Amplifier Harness, Maverick X3 Amplifier Mounting Brackets, Compatible vehicle fitment: Can-Am Maverick X3 2017 and newer, MARINE GRADE PROTECTION/IPX RATING, IPX67.

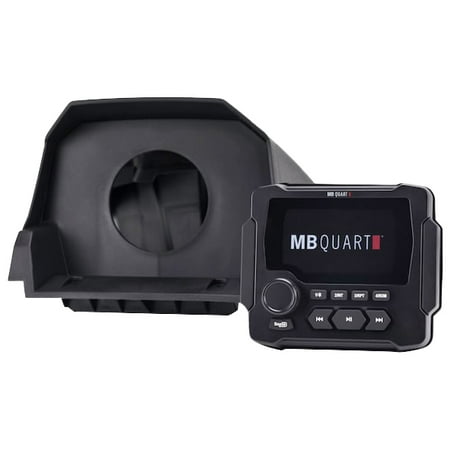

▪ Source unit features: MB Quart OFF-ROAD & Marine Multimedia Source Unit with 160 Watt internal amplifier features AM/FM/Bluetooth., OFF-ROAD & Marine Multimedia Source Unit: 160 Watt AM/FM/Bluetooth, USB, Mobile Entertainment Controller, Bluetooth Connect & Quick-Pair: Quick and secure pairing of devices with your music library with album art displayed, USB Control: Easily connect smartphones, portable media devices and streaming services. iPod control allows full Apple connectivity.
Manufacturer | MB Quart |
---|---|
Brand | MB Quart |
Item model number | MBQX-STG2-RAD-1 |
Color | Black |
Weight | 67 pounds |
Height | 16.2 inches |
Depth | 43.3 inches |
Product Id | 16722 |
---|---|
User Reviews and Ratings | 5 (1 ratings) 5 out of 5 stars |
UPC | 806576230915 |
OEM quality fit and finish; factory-matched materials and textures for a true plug-and-play installation. Features Quick Pair, which immediately connects the last device that was connected for full Apple device control with made with Bluetooth® technology capabilities. Includes plug-n-play harness and waterproof connectors with pre-measured wires; antenna not included. Included speakers are 6.5in., two-way composite coaxial speakers; included amplifier is a compact, Class D, 400-watt amplifier. Additional subwoofer system features a dual-voice 10in. subwoofer with high-impact HDPE composite under-seat enclosure. All necessary mounting panels and harnessing are included. includes LED gauge-mount radio w/ AM/FM, made with Bluetooth® technology with Apple for use with iPod/ iPhone control, plus two 6.5in. speakers and one amplifier) This item fits the following vehicle applications: for Can-Am Maverick X3 900 HO 2018 for Can-Am Maverick X3 DS Turbo R 2020 for Can-Am Maverick X3 Max DS Turbo R 2020 for Can-Am Maverick X3 Max RS Turbo R 2020 for Can-Am Maverick X3 Max Turbo 2018-2020 for Can-Am Maverick X3 Max Turbo R 2017-2019 for Can-Am Maverick X3 Max X ds Turbo R 2017-2019 for Can-Am Maverick X3 Max X ds Turbo RR 2020 for Can-Am Maverick X3 Max X mr Turbo RR 2020 for Can-Am Maverick X3 Max X rs Turbo R 2017-2019 for Can-Am Maverick X3 Max X rs Turbo RR 2020 for Can-Am Maverick X3 RS Turbo R 2020 for Can-Am Maverick X3 Turbo 2018-2020 for Can-Am Maverick X3 Turbo R 2017-2019 for Can-Am Maverick X3 X ds Turbo R 2017-2019 for Can-Am Maverick X3 X ds Turbo RR 2020 for Can-Am Maverick X3 X mr Turbo 2018-2020 for Can-Am Maverick X3 X mr Turbo R 2018-2019 for Can-Am Maverick X3 X mr Turbo RR 2020 for Can-Am Maverick X3 X rc Turbo 2018-2020 for Can-Am Maverick X3 X rc Turbo R 2018-2019 for Can-Am Maverick X3 X rc Turbo RR 2020 for Can-Am Maverick X3 X rs Turbo R 2017-2019 for Can-Am Maverick X3 X rs Turbo RR 2020
OEM quality fit and finish; factory-matched materials and textures for a true plug-and-play installation Features Quick Pair, which immediately connects the last device that was connected for full Apple device control with made with Bluetooth® technology capabilities Includes plug-n-play harness and waterproof connectors with pre-measured wires; antenna not included Included speakers are 6.5in., two-way composite coaxial speakers; included amplifier is a compact,
