Magnum Energy ME-SBC Smart Battery Combiner, Auto-Detect 12 or 24 VDC, Transfers up to 25 Amps

The ME-SBC is an innovative two-bank battery combiner. It is designed to monitor and charge a second battery using a portion of the current that is charging a main battery. This 25-amp combiner/isolator integrates an optional solenoid drive, remote voltage sense for more accurate sensing, High and Low battery cut-out to prevent over/undercharging, and automatic 12- or 24-volt operation. Connection to the oversized terminals is easy and simple. The basic design makes connecting the SBC as simple as it can get. Like other three-wire voltage followers, this is a very simple device to connect and setup. The universal controls and connections make this a perfect replacement product. The remote sense line can be used to monitor the battery voltage of a battery far away or at a charging source. Also, this is used to help minimize unnecessary cycling between combining and isolating, which can lead to early solenoid failure. MFG# ME-SBC MESBC UPC# 892608001202

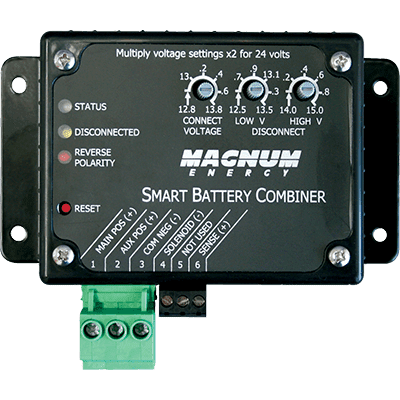

The Magnum Energy Smart Battery Combiner (ME-SBC) is an easy-to-use stand alone battery combiner and isolator for 12 and 24 VDC systems. Apply a single chargingsource to the main battery bank and the ME-SBC charges a second battery bank using a portion of the current. With adjustable voltage ranges, including automatic on off setpoints, the ME-SBC prevents underor over-charging. The Front Panel Includes: LED indicators showing status and operation. Three adjustable voltage dials to set the ?Connect Voltage?, ?Low V Disconnect?, and ?High V Disconnect.? An oversized power terminal block allowing for easy wire connections even if the wires are large. An accessories terminal block to add a solenoid Or a separate voltage sense line. A reset switch. Features: Voltage auto-detect feature recognizing 12 or 24 VDC. Transfers up to 25 amps. Solenoid drive for requirements greater than 25 amps. Over-temperature and over-current shutdown. Adjustable voltage settings with a wide range allows for charging flexibility. Bi-directional charging. Reverse polarity protection. Sense lead for long-run applications. ME-SBC DC volts 12 or 24 VDC nominal DC amps 25 amps continuous Maximum VDC 40 volts peak Average operating tare loss ~150 mW Maximum operating tare loss < 220 mW Non-operating tare loss < 50 mW Operating range 0 - 32 VDC Shipping weight 2 lbs (0.9 kg) Unit dimensions (l x w x h) 4.2? x 5.4? x 1.4? (10.7 x 13.7 x 3.6 cm) Maximum operating temperature -40° F to +185° F (-40° C to + 85° C) Maximum storage temperature -40° F to +194° F (-40° C to + 90° C)
