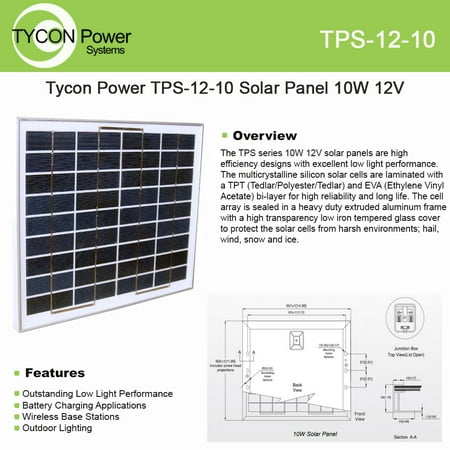

Tycon Power TPS-12-10 10W 12V Solar Panel

Tycon Power TPS-12-10 10W 12V Solar Panel

The TPS series 10W 12V solar panels are high efficiency designs with excellent low light performance. The multicrystalline silicon solar cells are laminated with a TPT (Tedlar/Polyester/Tedlar) and EVA (Ethylene Vinyl Acetate) bi-layer for high reliability and long life. The cell array is sealed in a heavy duty extruded aluminum frame with a high transparency low iron tempered glass cover to protect the solar cells from harsh environments; hail, wind, snow and ice.The solar panels are easy to mount because of the aluminum frame design. The wired connections are via a weatherproof junction box on the back of the panels.Max Power = 10W, 0.58A, 17VSize: 11.8 x 14 x 0.7inchWeight: 3.5lbTypical Monthly Energy Production = 1.2 kWh
